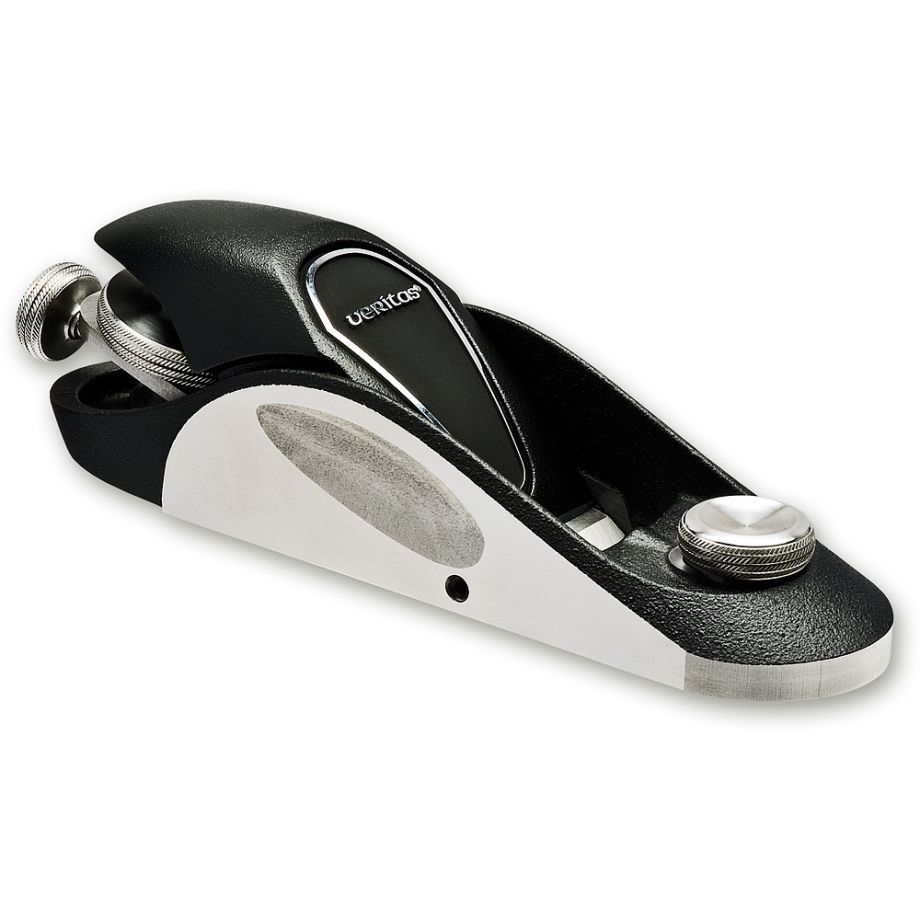

Veritas DX60 Block Plane

Availability: in stock


  • The Veritas DX60 Block Plane is a Veritas premium plane used for many all-round jobs.
  • The sole and sides are made even flatter than the other non-premium planes, with a flatness between +0.000" and -0.0015".
  • Fully adjustable block plane with adjustable blade and adjustable mouth.
  • Low angle 12 degree bed angle and 25 degree blade bevel angle = cutting angle of 39 degree.
  • PM-V11 Plane Blade
  • Length: 180mm (7"), Width: 44mm (1 3/4").
Only 1 item left!


The Veritas DX60 Block Plane is available with the choice of one of two different plane blade types:

  • O1 Plane Blade
  • PM-V11 Plane Blade

The plane is made from ductile cast iron; a material which is stronger than traditional grey iron.

The turned knobs / adjusters are constructed from stainless steel to help ensure the longevity of this tool.

The Veritas DX60 has been designed for comfort with its many curves and finger grip indents, it has also be designed for stability with its flat sides and sole and its large sides.

The plane is fully adjustable with an adjustable blade and with an adjustable mouth.

The adjustable mouth can be easily adjusted to create a range of mouth sizes from fine through to wide open.

The plane has the option of using a set screw to memorize the mouth opening position, this is very useful for moments when the plane mouth needs clearing of shavings and then the mouth returned to its previous mouth opening size.

The Veritas DX60 has the unique feature of having a completely enclosed moveable toe / moveable mouth plate.

The back of the plane blades have been lapped with a flatness tolerance of +/-0.005mm or better over the working surface.

Length: 180mm (7")
Width: 44mm (1 3/4")

Tool Manufacturer: Veritas Tools (Canada)

For more photos and information see the Veritas DX60 Block Plane Review on
