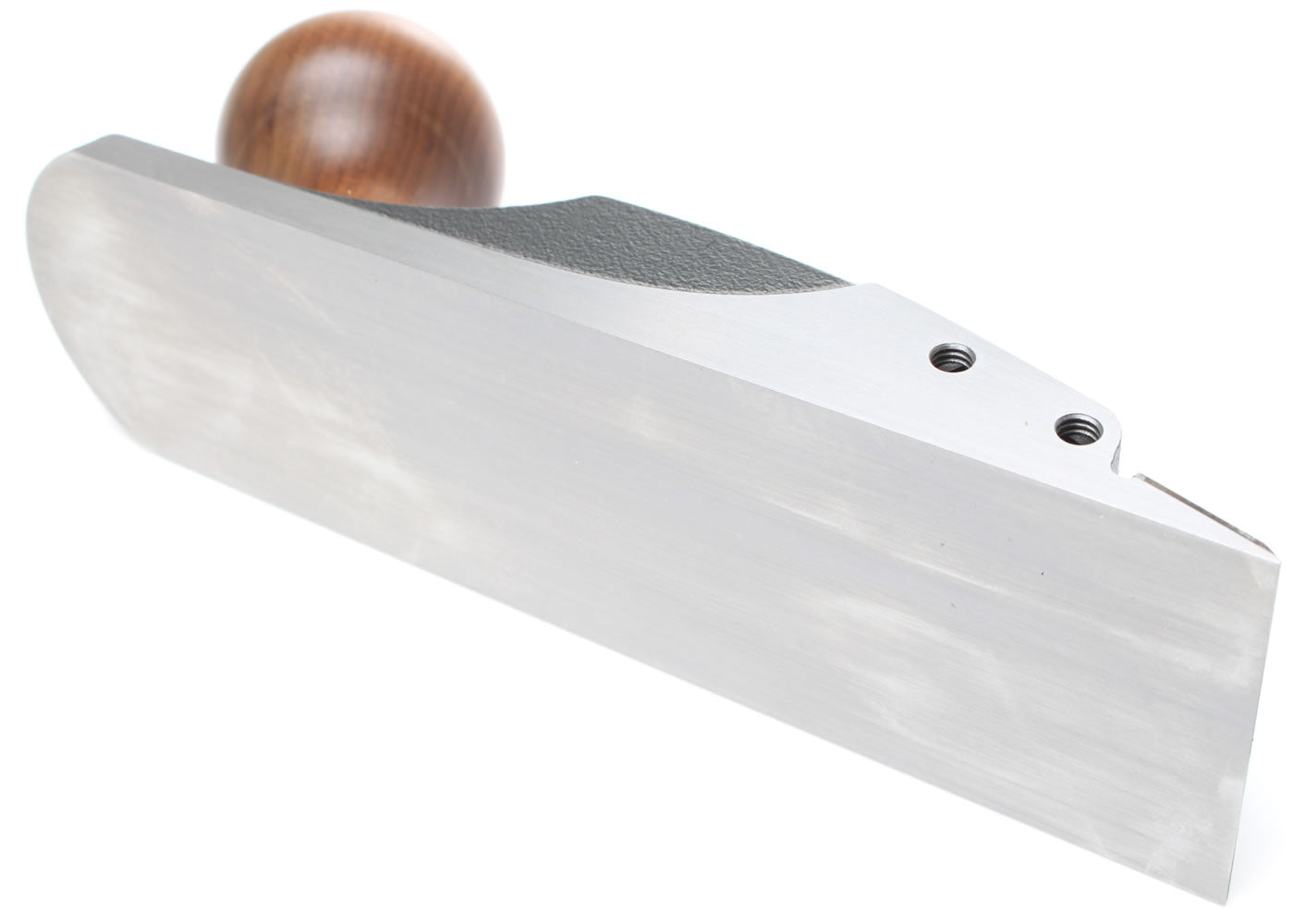

Veritas Cabinet Makers Edge Trimming Plane - Chisel Plane

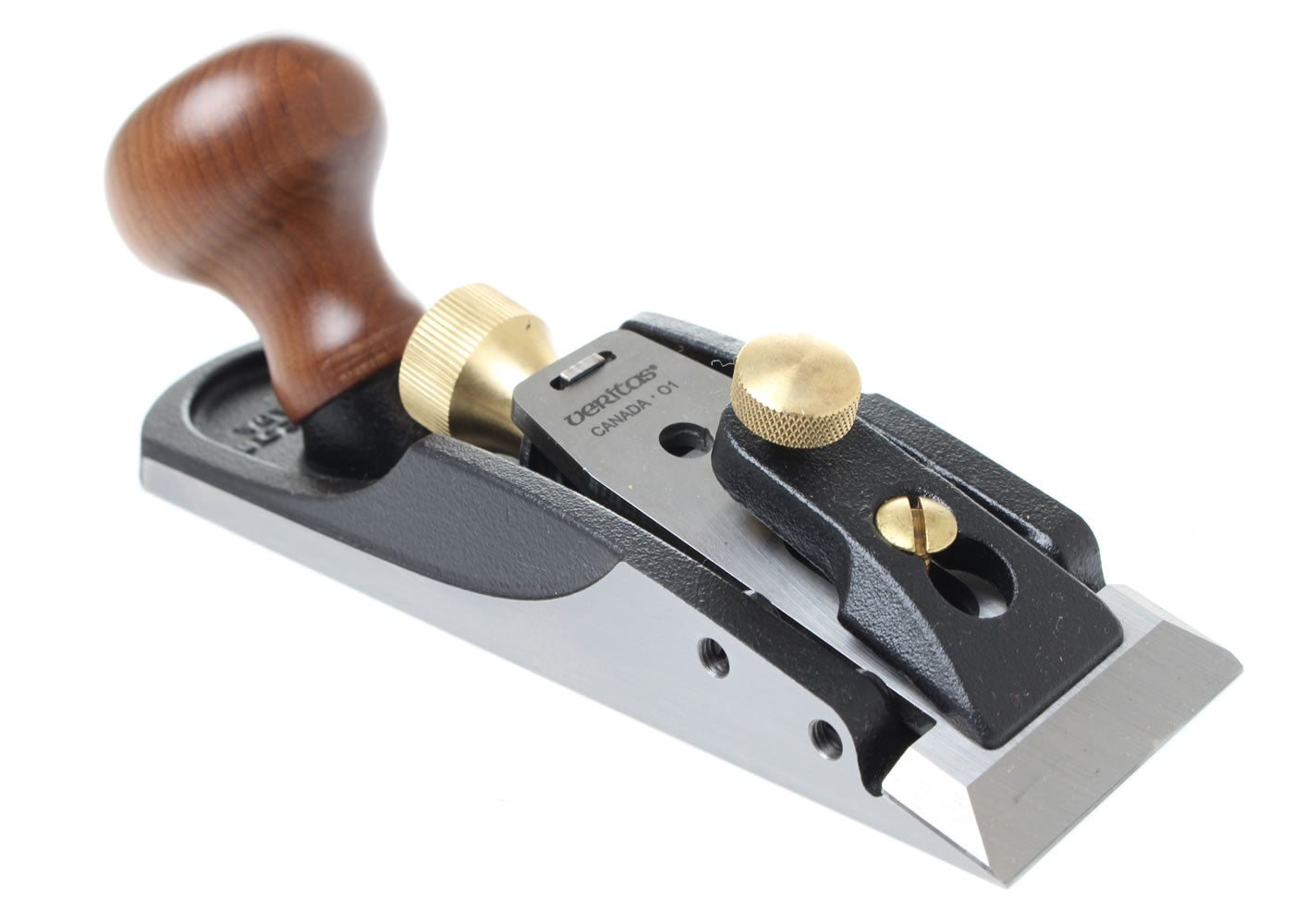

• Veritas Cabinet Makers Edge Trimming Plane - Commonly known as a chisel plane with a full-width exposed blade
• Designed to work right up against adjacent surfaces and tight areas

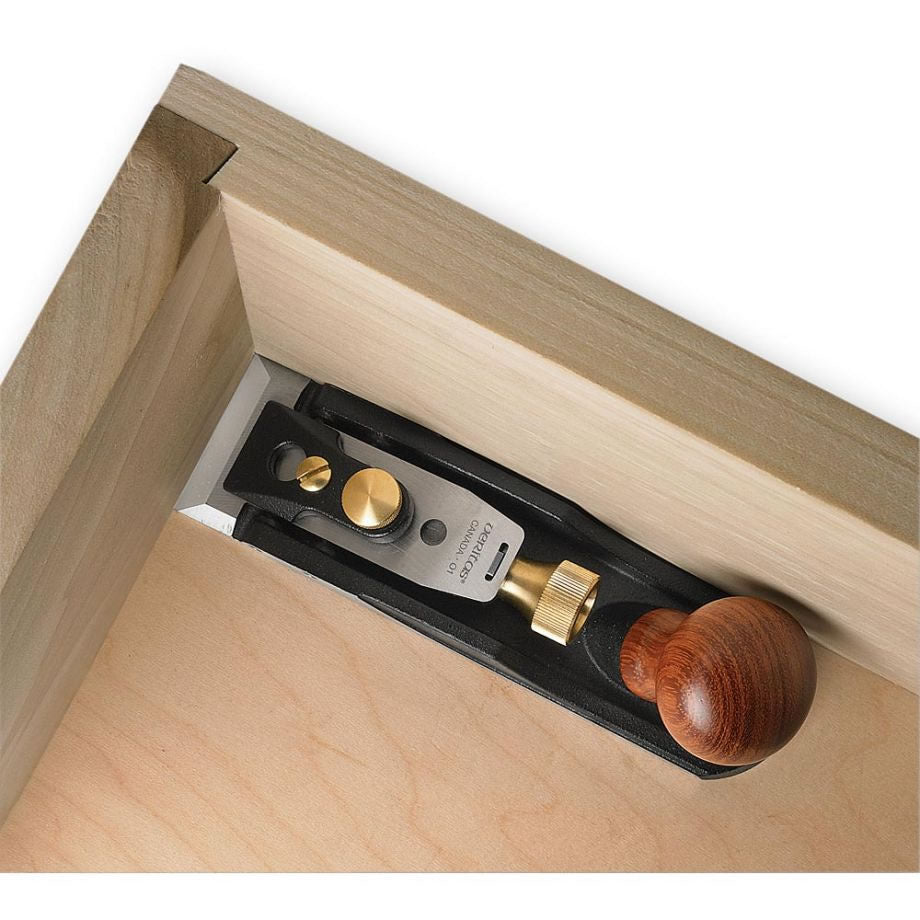

• Ideal for cleaning up corners, joints, and internal carcass work
• Useful for paring cuts where a standard chisel is difficult to use

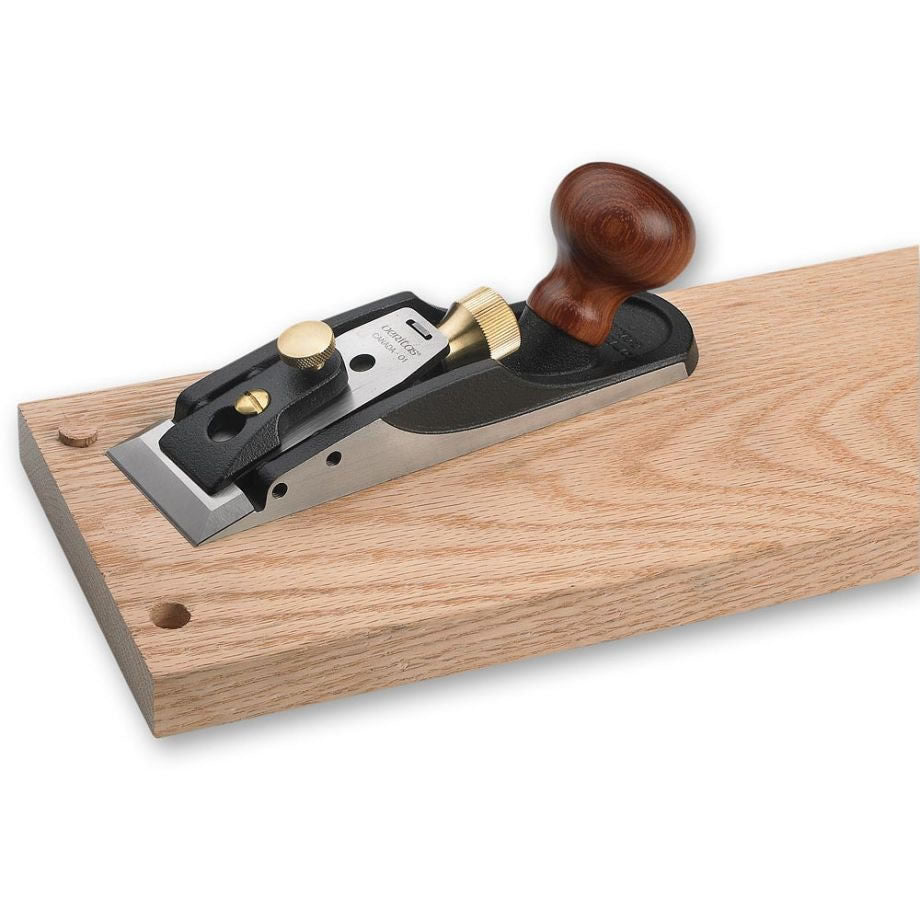

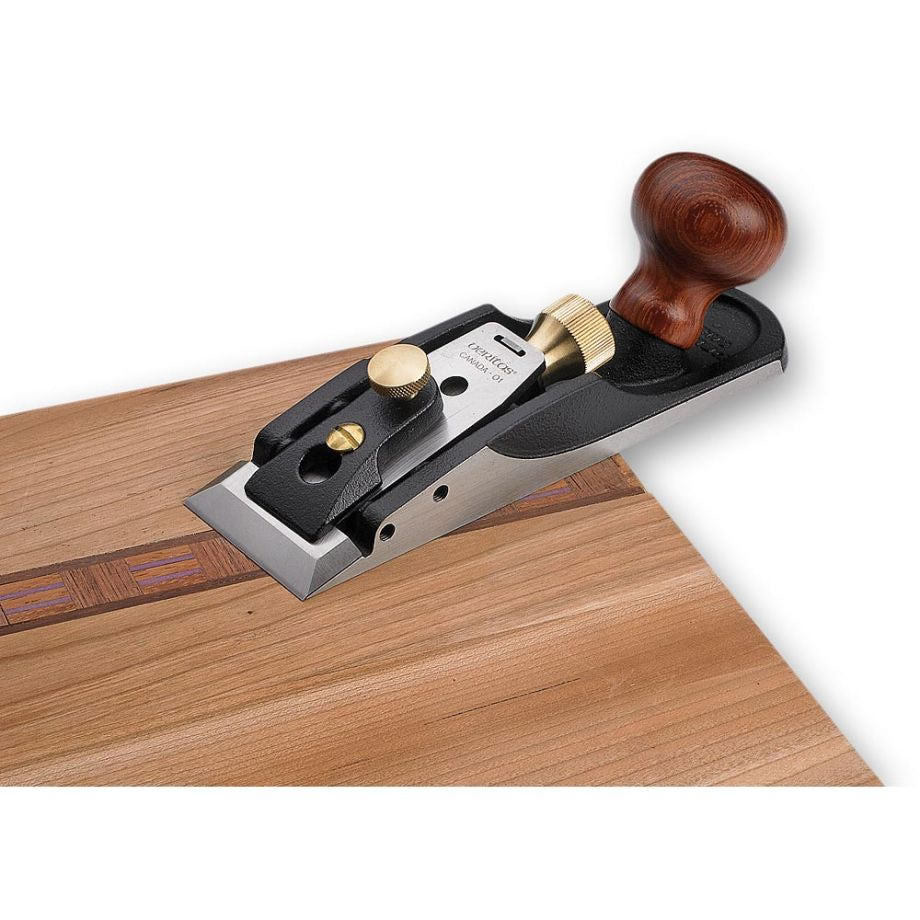

• Can trim plugs and small inlays flush with surrounding wood
• 15° bed angle with 20° blade bevel (35° cutting angle) for clean end-grain cutting
• Blade can be set level with the sole for flush trimming tasks

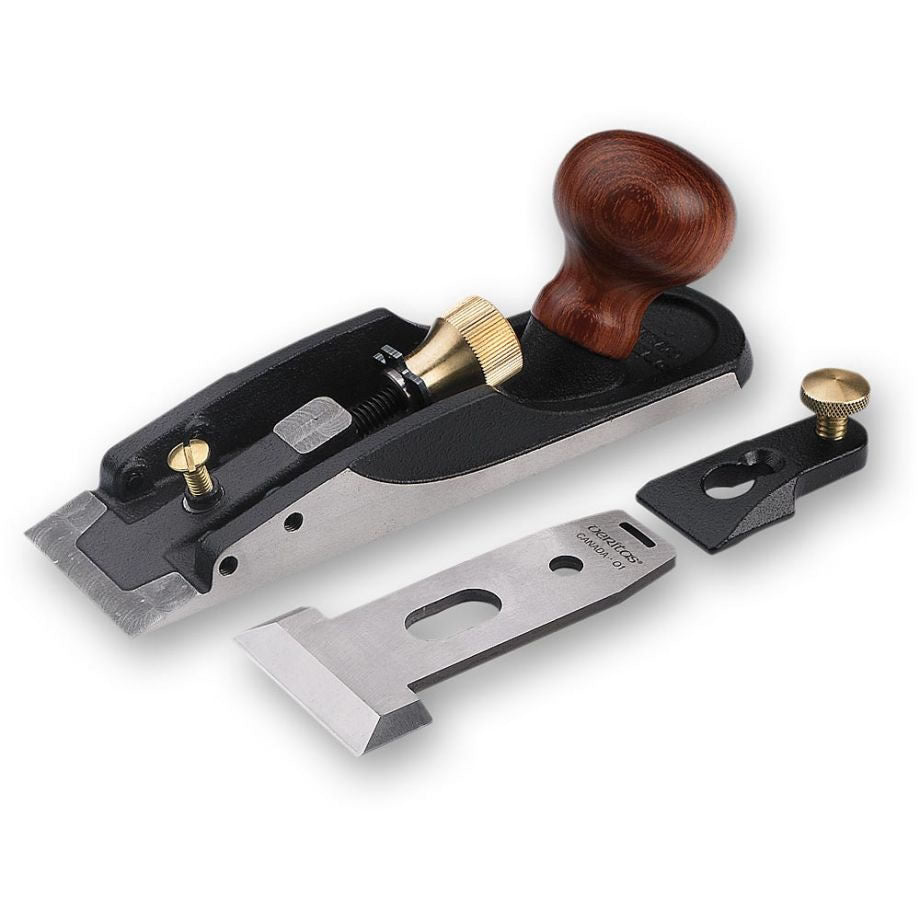

• Plane is fitted with depth adjustment thumb wheel and blade registration set screws.

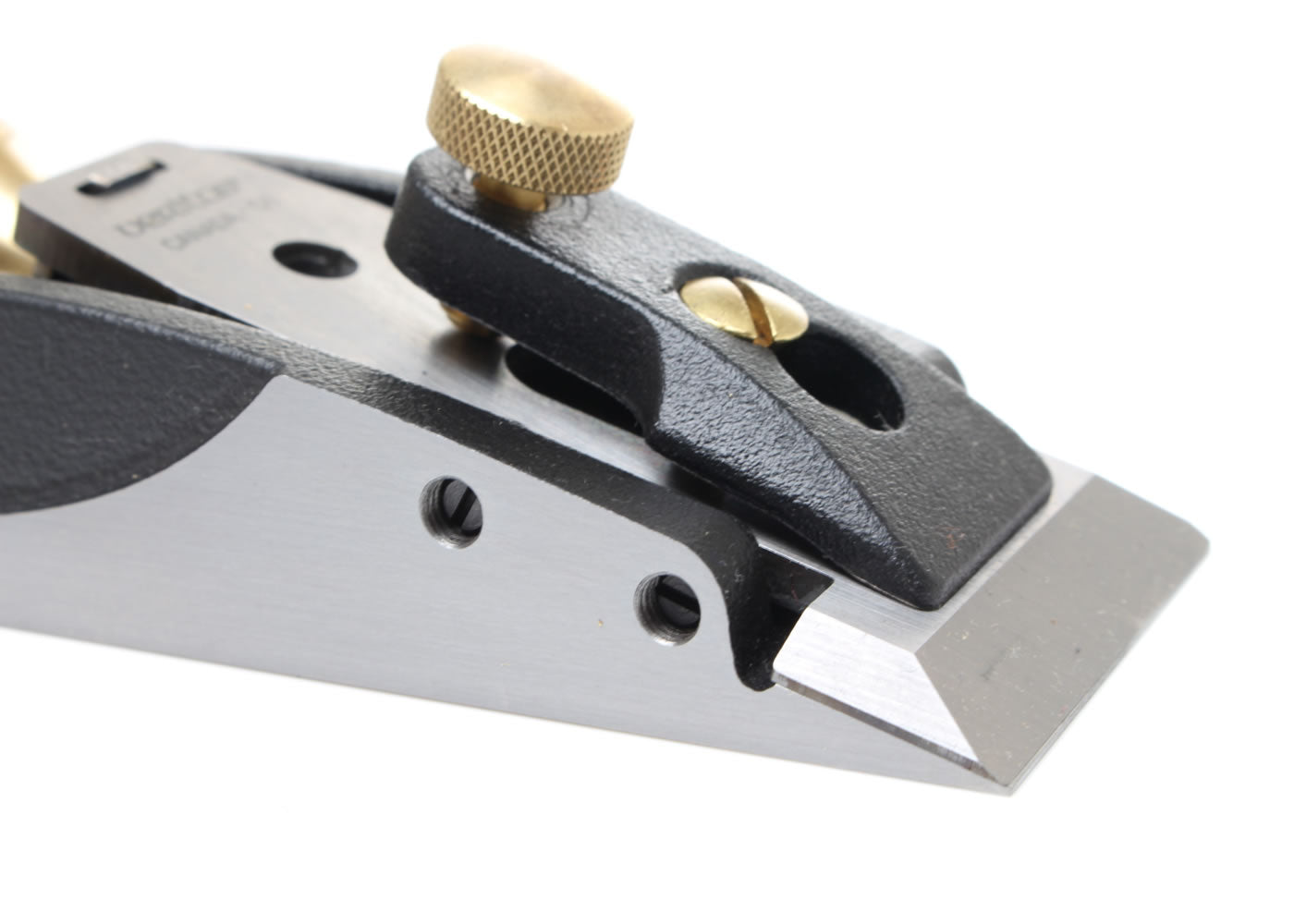

• Exposed full width Lapped O1 steel blade hardened to Rc 58-60, lets you work up to adjacent surfaces.

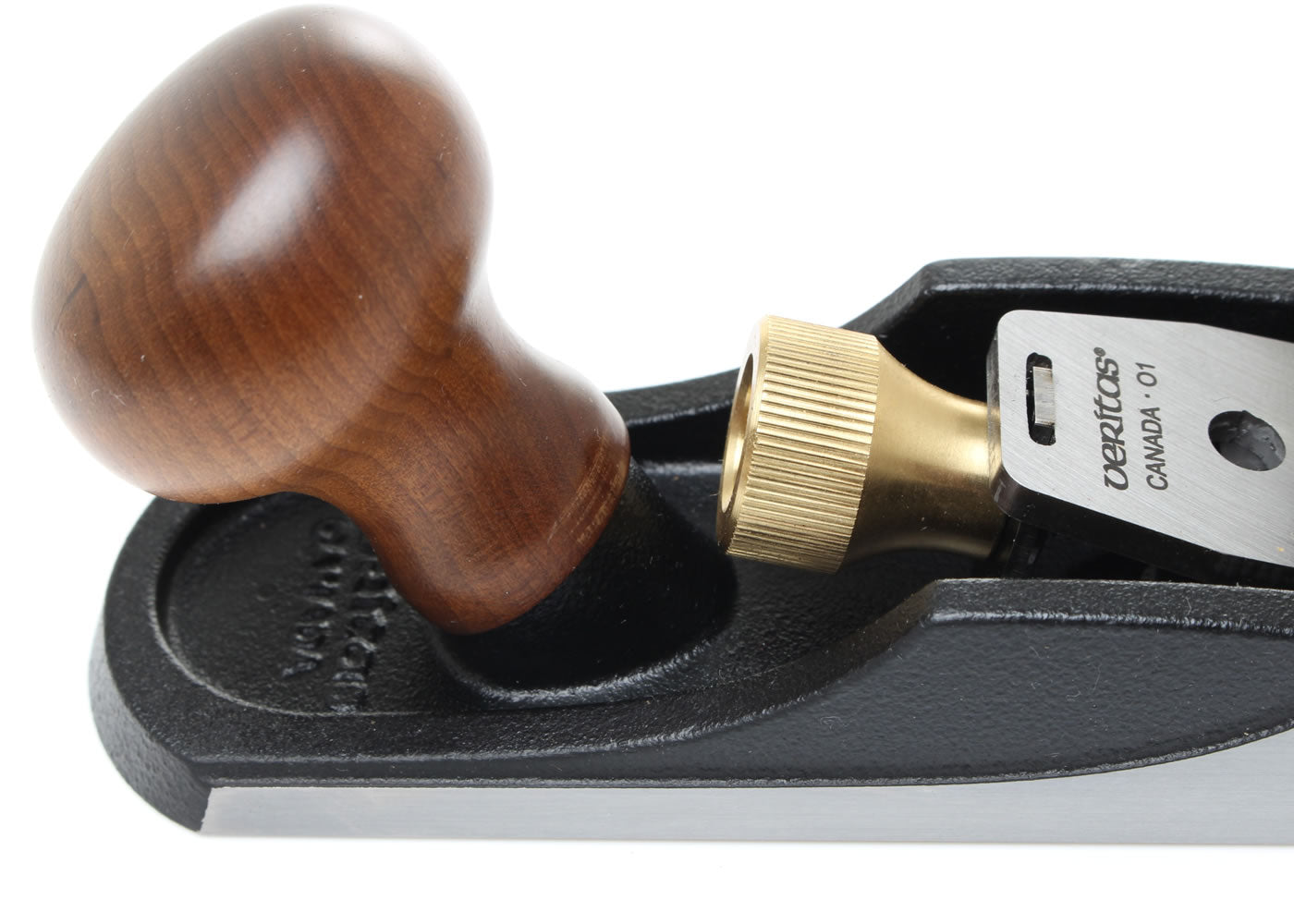

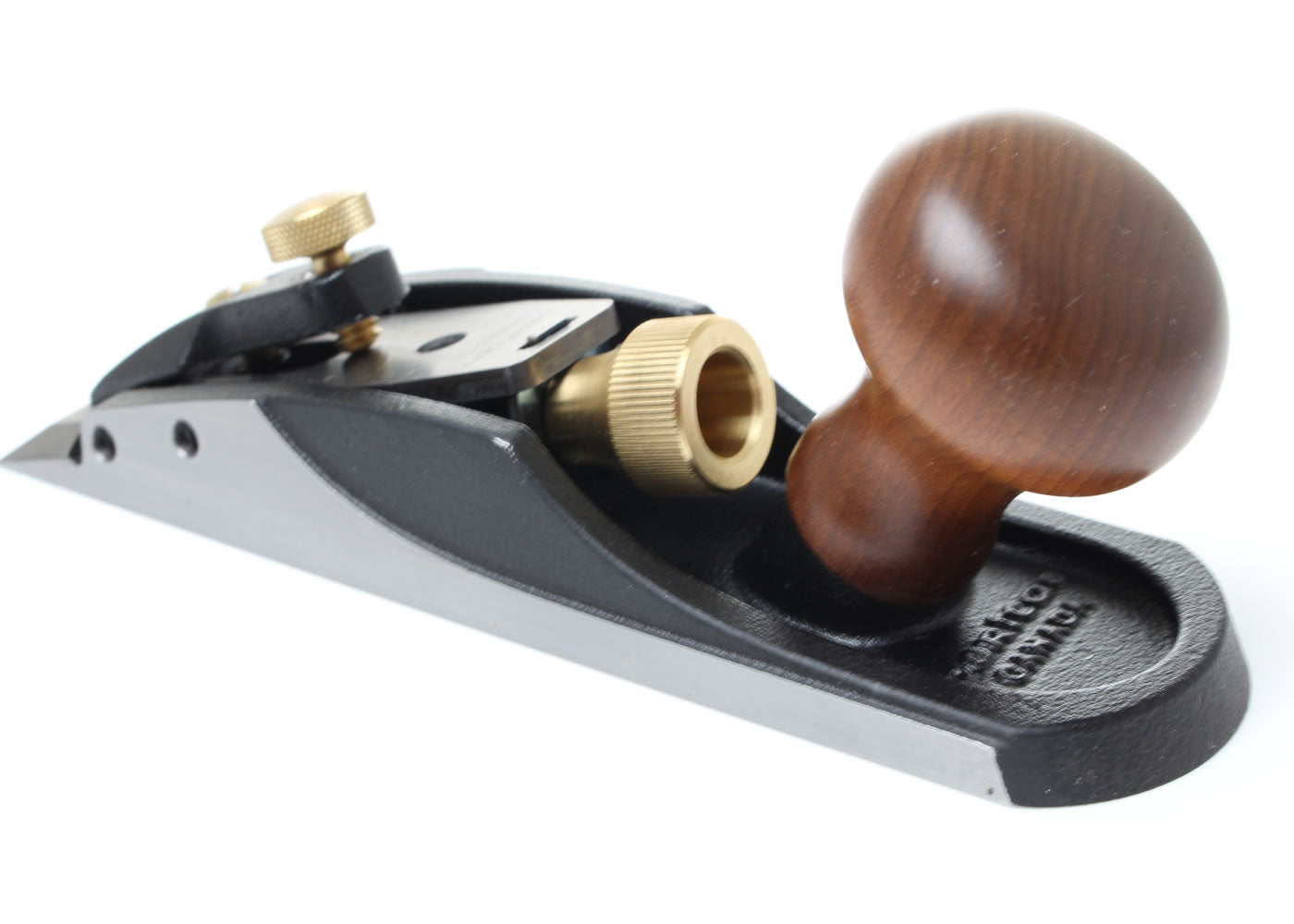

• Features a comfortable rear hardwood knob and grip-friendly body design.
• Ductile cast iron body.


This chisel plane features a full-width exposed blade, allowing you to work directly up to adjacent surfaces with ease. It is especially useful for trimming and refining tight spaces, making it a practical choice for detailed joinery tasks.

It performs well when cleaning up corners and joints inside cabinets or carcasses, where access is limited. The design also makes it well suited for paring cuts in areas where a traditional chisel would be awkward to handle.

The blade can be set flush with the sole, making it ideal for trimming plugs and small inlays level with the surrounding surface without damaging the wood. Its low cutting angle, created by the 15° bed and 20° bevel, helps achieve clean results when working end grain.

For ease of use, the plane includes a thumb wheel for depth adjustment and set screws to help keep the blade aligned. The rear knob fits comfortably in the hand, while the body shape provides a secure grip during use.

Supplied with a lapped O1 steel blade hardened to Rc 58–60. The 20° bevel combined with a 15° bed angle creates a 35° cutting angle, helping to cut end grain cleanly while reducing tear-out.

The Veritas Cabinet Makers Edge Trimming Plane also known as a Chisel Plane or Piano Makers plane is an innovative new design of the classic Stanley No.97 Edge Trimming Plane.

Length: 165mm
Width: 44mm
Weigh: 0.544kg.

Tool Manufacturer: Veritas Tools (Canada)

Please see the Stanley No.97 Edge Trimming Plane review on FindMyTool.co.uk for more information and photos.
