SKU: 20B-1 1/2"

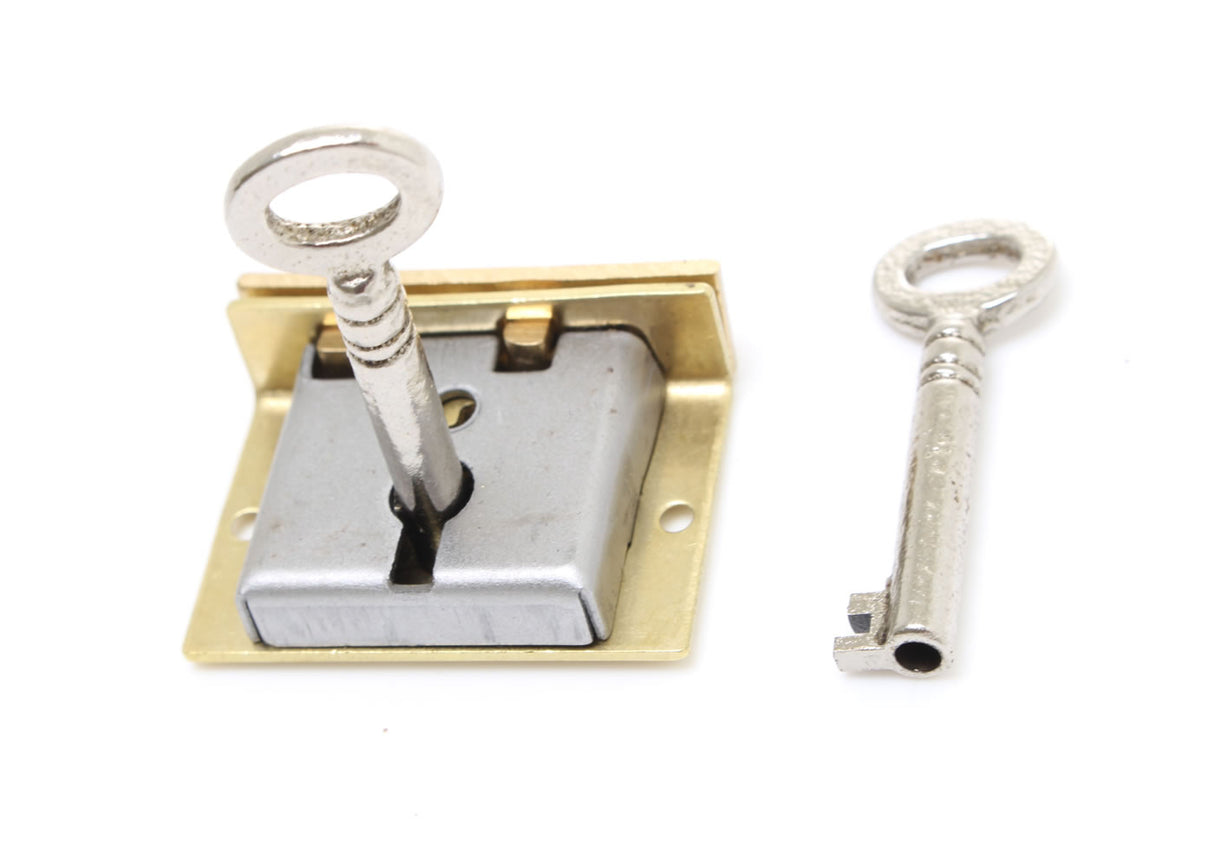

Box Lock - 1 Lever

£18.60 GBP

UK Delivery

FREE delivery on orders over £75. (Est 1-3 working days)

Main Carrier: Royal Mail Tracked 24.

Full Delivery Info >>

  • Squire Box Lock (No.20B)
  • 1 lever
  • Designed to be fitted on the inside of a wooden box to lock the lid inplace.Squire Logo
  • Available sizes: 1 1/2", 2", 2 1/2", 3"
  • Supplied with 2 keys
  • Made in England

Manufacture Origin: England

Available sizes:

1 1/2" Brass Outer Plate Dimensions:
1 1/2" x 1" x 7/16" (38mm x 25mm x 10mm)
Distance To Pin: 5/8" (16mm)

2" Brass Outer Plate Dimensions:
2" x 1 1/4" x 1/2" (51mm x 31mm x 12mm)
Distance To Pin: 3/4" (18mm)

2 1/2" Brass Outer Plate Dimensions:
2 1/2" x 1 3/8" x 1/2" (63mm x 35mm x 12mm)
Distance To Pin: 7/8" (21mm)

3" Brass Outer Plate Dimensions:
3" x 1 9/16" x 9/16" (76mm x 40mm x 14mm)
Distance To Pin: 15/16" (23mm)

Box Lock need to be cut into the wood on the inside of the box.

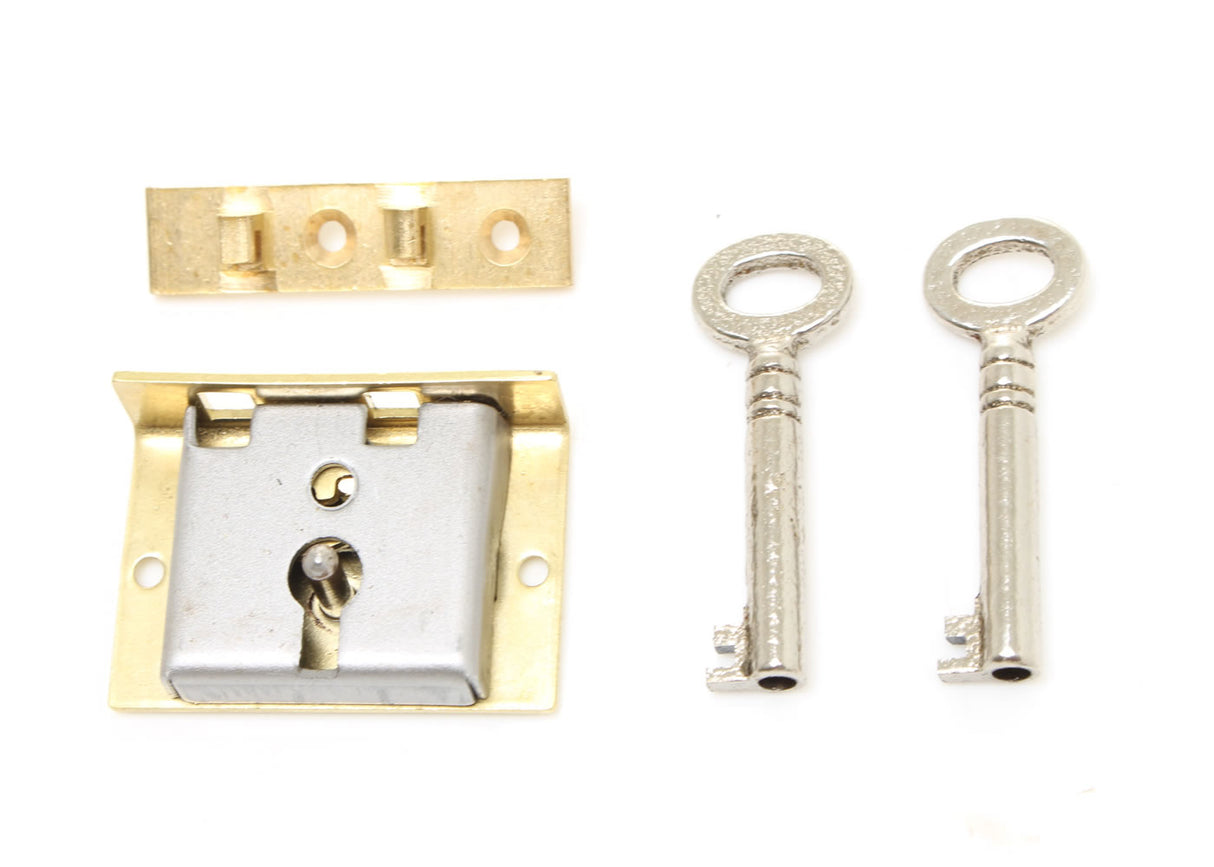

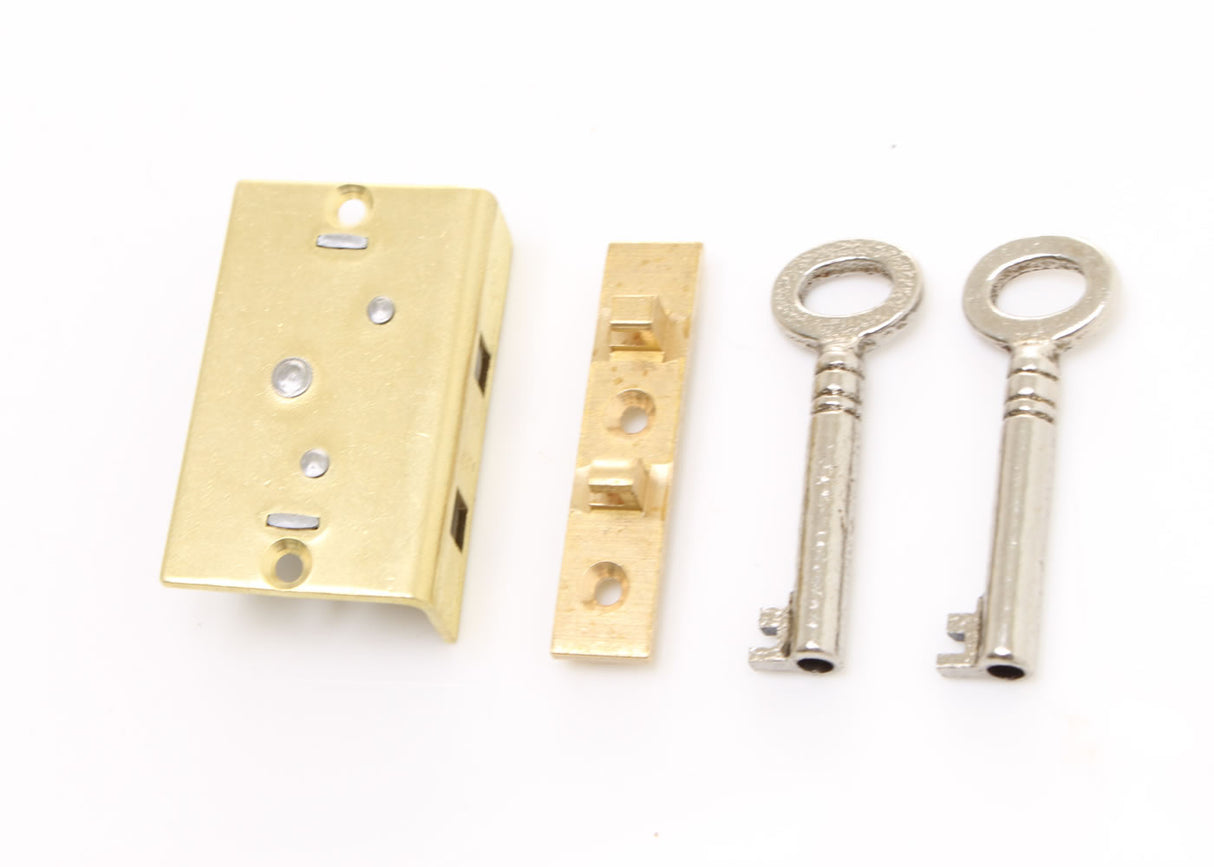

Single lever box Lock with two keys and striking plate. These locks are manufactured to a very high standard by a lock manufacturing family in Willenhall, West Midlands who have been in the business of making locks for over 300 years!!

1 Brass Lever, Brass Plate, Riveted Steel Cap, Brass Bolt and Link.

Sanded Selvedge, Self Colour Back Plate, Cap and Link.

2 Keys Per Lock, Malleable Iron, Nickel Plated.

Keyed Alike Only
