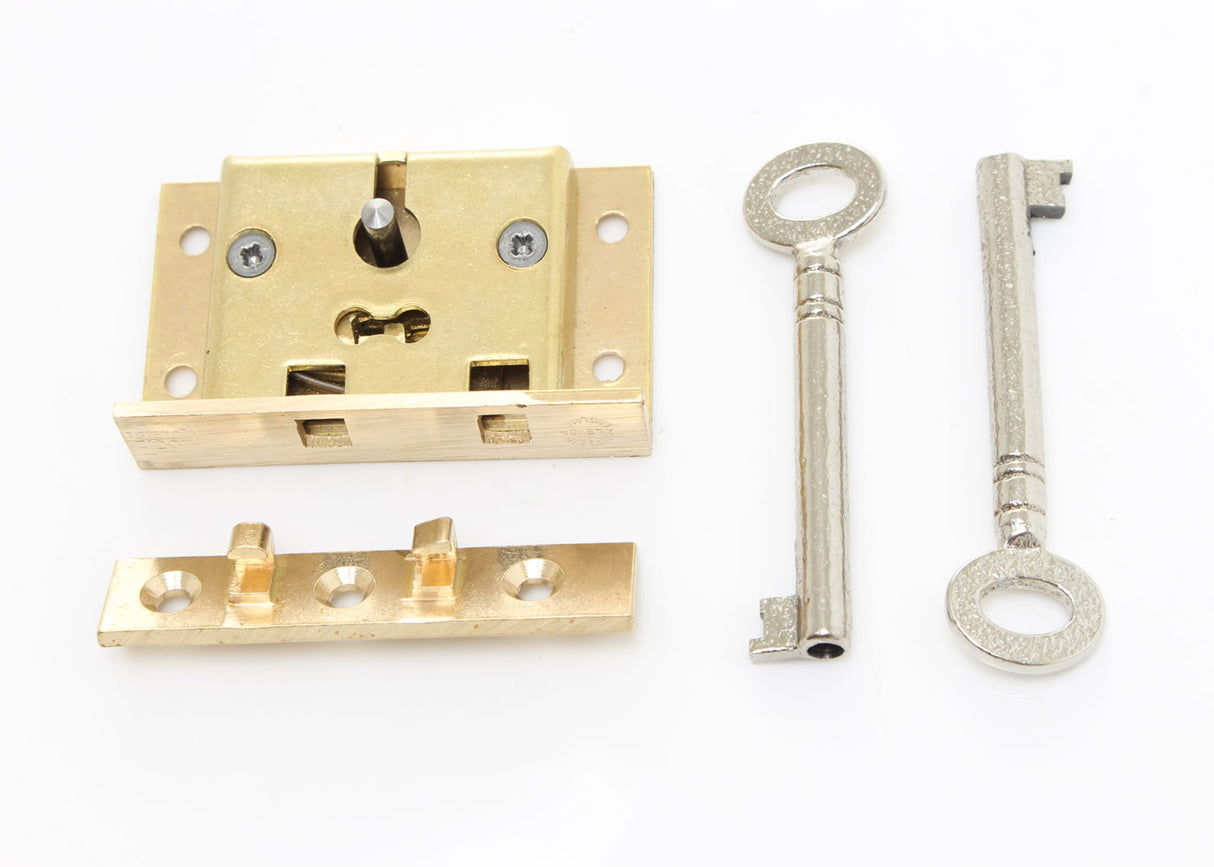

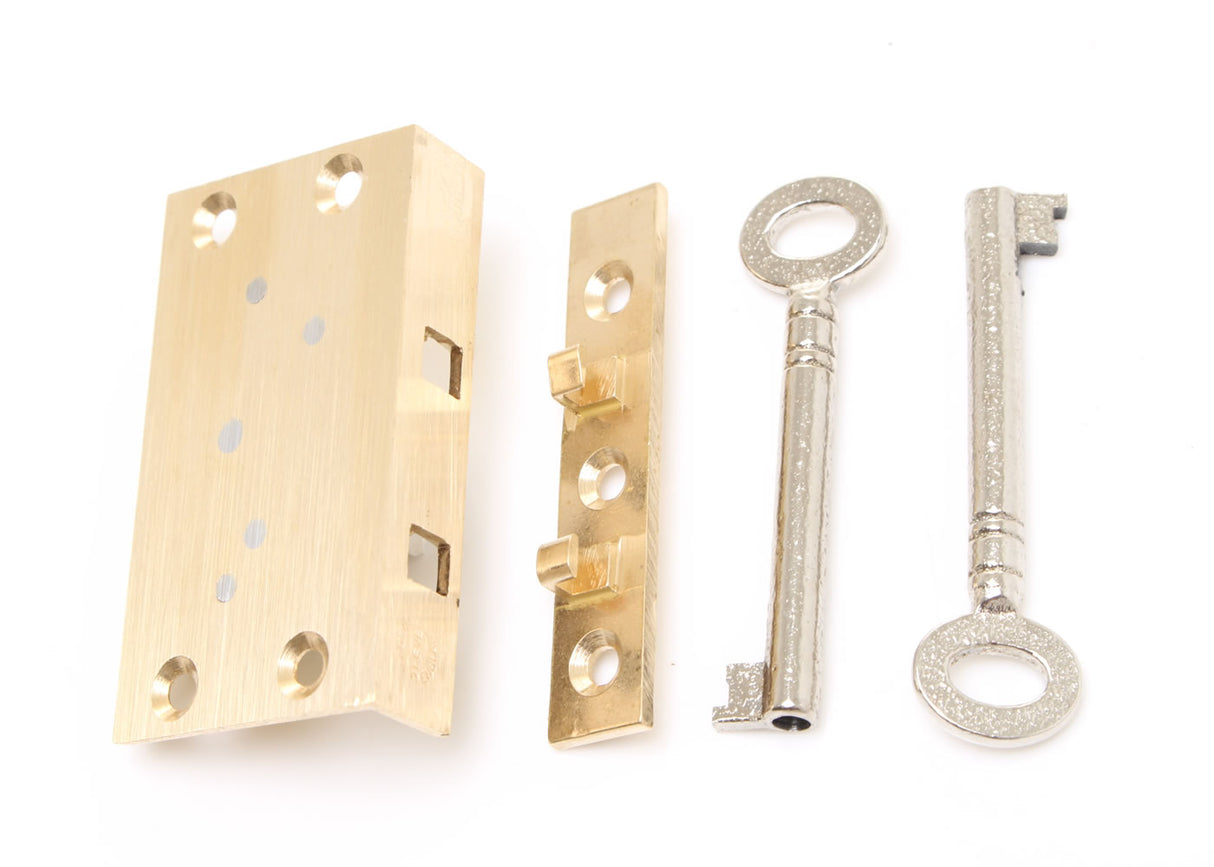

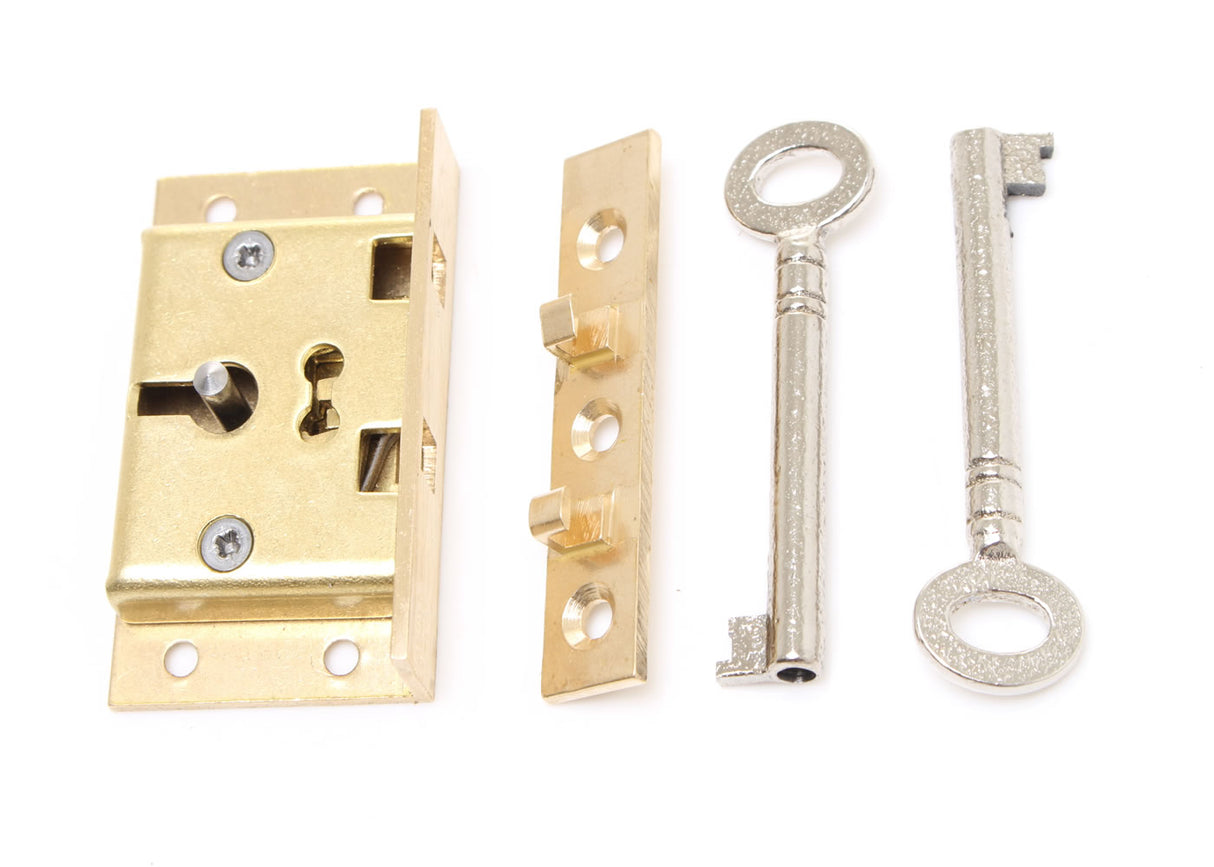

Box Lock - 2 Lever

• Squire Box Lock (No.48)

• 2 lever
• Designed to be fitted on the inside of a wooden box to lock the lid inplace.
• Available sizes: 1 1/2", 2", 2 1/2", 3"

• Supplied with 2 keys
• Made in England

Manufacture Origin: England

Available sizes:

1 1/2" Brass Outer Plate Dimensions:
1 1/2" x 1 1/16" x 7/16" (38mm x 27mm x 11mm)
Distance To Pin: 5/8" (17mm)

2" Brass Outer Plate Dimensions:
2" x 1 3/16" x 7/16" (51mm x 30mm x 11mm)
Distance To Pin: 3/4" (19mm)

2 1/2" Brass Outer Plate Dimensions:
2 1/2" x 1 1/2" x 1/2" (63mm x 38mm x 13mm)
Distance To Pin: 7/8" (22mm)

3" Brass Outer Plate Dimensions:
3" x 1 11/16" x 9/16" (76mm x 42mm x 14mm)
Distance To Pin: 1" (26mm)

Box Lock need to be cut into the wood on the inside of the box.

A 2 lever box Lock with two keys and striking plate. These locks are manufactured to a very high standard by a lock manufacturing family in Willenhall, West Midlands who have been in the business of making locks for over 300 years!!

Material:
2 Brass Levers, Extruded Brass Plate, Screwed Brass Cap, Brass Bolt and Link.

Finish:
Sanded Plate, Self Colour Cap and Link.

Keys:
2 Keys Per Lock, Malleable Iron, Nickel Plated.

Differs:
Keyed Alike Only
